Globe Mill Dam
07 29 LOWER DAM REBUILT AFTER FLOOD
The New Dam - Mr. W. H. Blanchard and Enos Salsich are now engaged in building a new dam across Rock River, a few rods below Main Street bridge, in place of the one that was carried away some six weeks ago by the great flood. The new structure will be built in such a way as to make it strong and permanent, and capable of resisting any amount of pressure that will ever be made upon it by any accumulation of water that is likely to flow over it. When completed it will furnish a splendid and reliable water power, sufficient to carry all the machinery that is now located on the river, and as much more as it may be profitable to put in operation. A large number of men are now employed on the work, the object being to get the structure done as soon as possible, so that the mills now standing idle may once more be set in motion. The two grist mills that depend on this power for water are among the largest and best in the state. Both are being thoroughly overhauled and repaired, and will be put into the best running order. When driven to their full speed, they are capable of manufacturing daily large quantities of the best quality of flour, and their brands stand among the first class in all markets where they are seen. They give steady employment to a considerable number of men, and their success is a matter of interest to all. WD
09 09 Water power for sale or to lease. Blanchard. WD

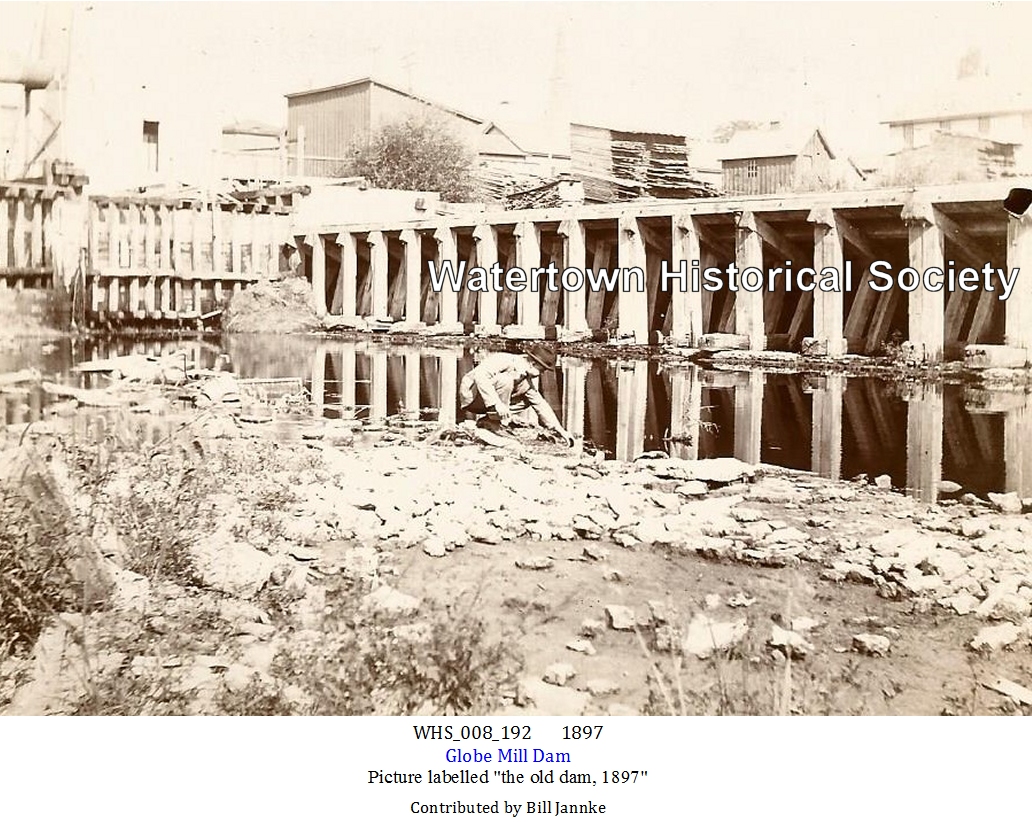

09 07 The old Mill Dam below Main Street bridge has received a covering of new planks, a much needed job, and one very readily accomplished owing to the present remarkable low stage of water. WR
03 06 WATER POWER UNDERYUSED
Kilbourn City has recently received a proposition from an eastern syndicate which offers to put up and have in operation in two years a manufacturing plant to cost $500,000 and to employ 500 hands, provided the city will give them title to the dam and waterpower, twenty-five acres of land and a bonus of $10,000. What's the matter with Watertown securing something of this kind? There are two dams and waterpower within the city limits laying idle that could be used to good advantage in most any kind of manufacturing business. WG
06 19 REPAIR SLATED
Some repairing is soon to be made by the waterpower owners on the dam south of Main Street bridge, and in consequence the water in the river will be greatly lowered. The work, it is expected, will take about a week. WR
06 26 REPAIR IN PROGRESS, FISHWAY POSSIBLE
The repairs and alterations now going forth on the dam present an excellent opportunity for the placing of fishways therein, and a number of our sportsmen are interesting themselves in the matter and will ask the water-power owners to make the improvement. The fish and game warden has been written to and has promised to forward the necessary pIans for the scheme shortly.
Those who have seen these fishways in operation say it is surprising how many fish will ascend them in the spring of the year, when the course of the fish is always toward the head waters. There is no doubt that with a couple good fish ways in the dam the fishing above the dam would be greatly improved and it is hoped by all interested the improvements will be made.
Work on the repairs to the dam was begun Monday. An opening was made at the base of the dam and the water in the river has since lowered about five feet. Above Cady Street bridge there is scarcely any water on the level, and great quantities of fish are being taken out of the holes. WR
07 10 NO FISHWAY
The repairs on the dam were finished last Friday afternoon and the water in the river is again in a normal condition. Owing to the fact that no plans were furnished by the fish warden, there was no fishway placed in the dam. WR
09 11 WATER POWER UTILIZED
Globe Mill was being operated entirely by steam, but after the remodeling of its water power plant, water power was utilized. WG

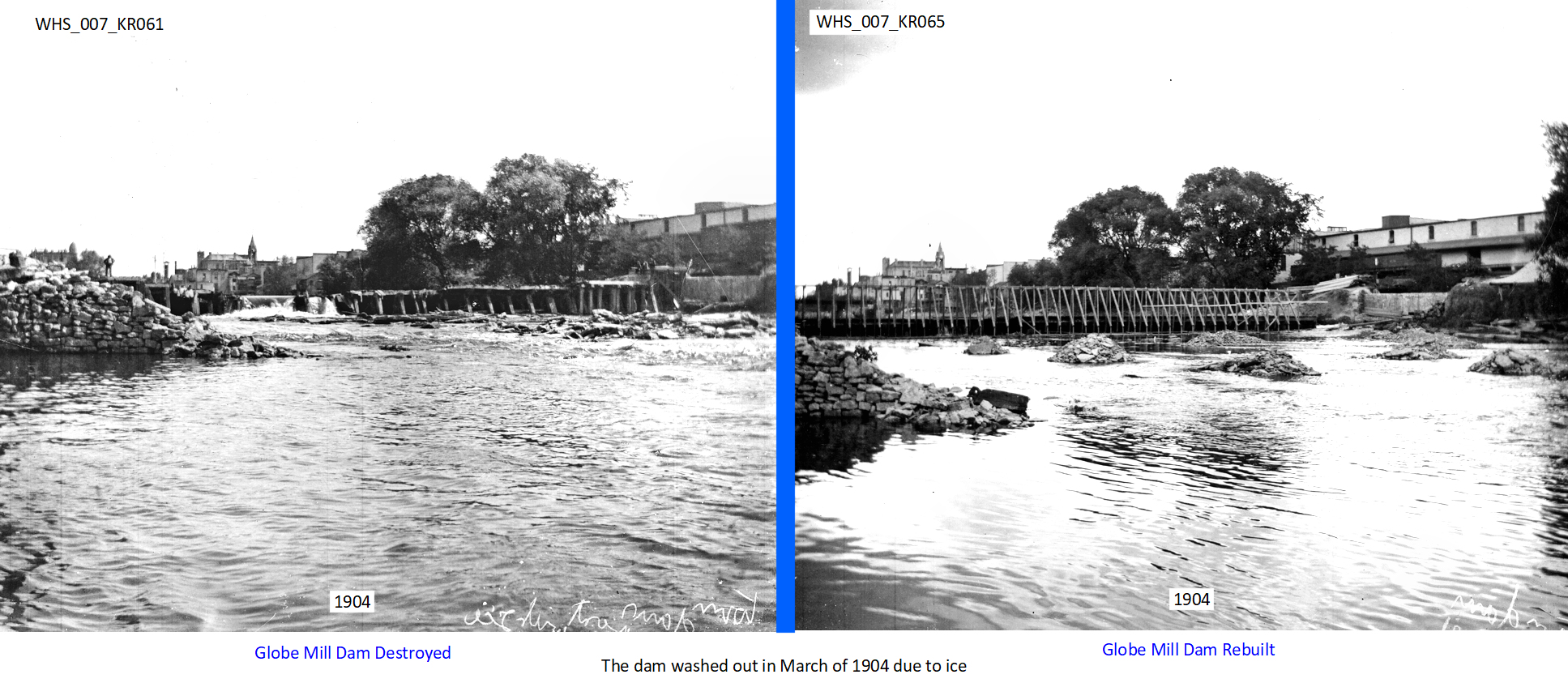

March DAM WASHED OUT DUE TO ICE
07 08 CONTRACTS FOR BUILDING CONCRETE DAM

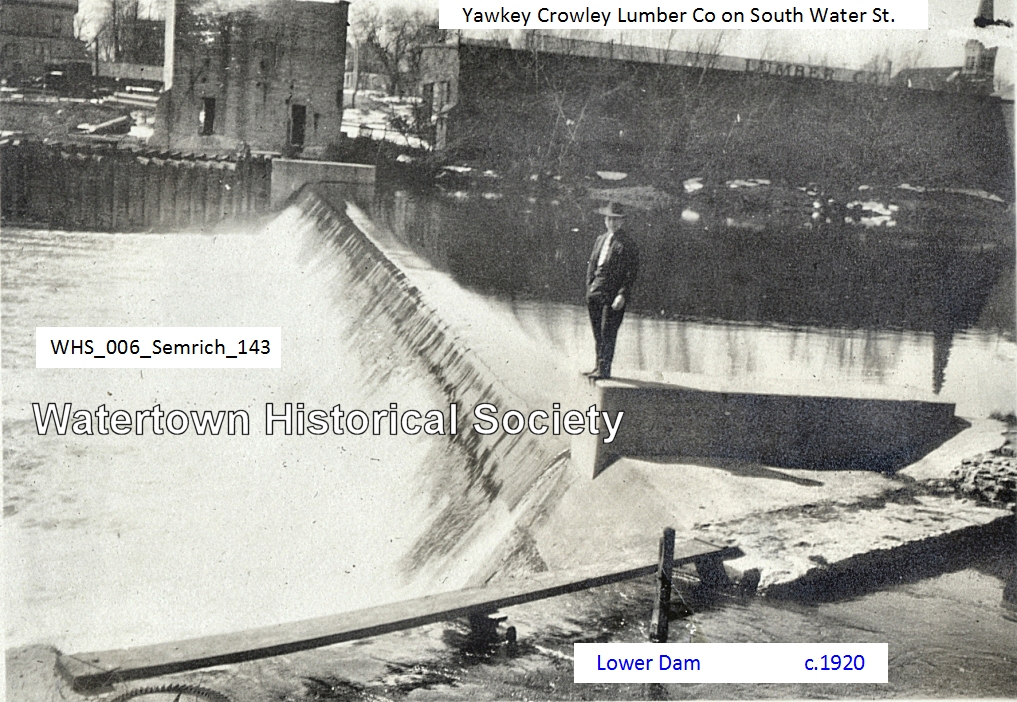

The contracts for the building of the concrete dam below Main Street bridge have been let to Frank E. Cowan, of this city, the consideration being about $5000. It will be 190 feet long, 12 feet wide at the bottom and 3 feet wide at the top and 10 feet high.
The north side of the dam will be almost perpendicular, slanting, only slightly at the top. The south side of the dam will have considerable of a slope to it, and that will do away with the falling of water as with the old dam and prevent the air concussion which for years past have been caused by-the falling of the water over the dam, causing doors and windows to rattle in every section of the city.
RE-CONSTRUCTION OF DAM
10 28 Yesterday forenoon a farmer, whose home is about a mile north of Richwood, came to the city to transact business and during the day became intoxicated to such an extent that he was placed in the city lock-up until he become sober. Toward evening he was released, and it is supposed that he at once proceeded to fill up again and in the night hitched up his single horse which was attached to a light wagon upon which he had some lumber, stove and family supplies, and in his muddled condition instead of starting for home drove off the embankment at the west end of Market street into the river. The horse which was a young and valuable animal was drowned, and both the horse and the wagon floated down to the dam where they could be seen this morning. As the unfortunate man has not been seen since the accident, it is thought that he is also in the river and efforts are being made to recover the body.
Globe Mill and dam, left; Alex Hardie 1905 picture, used in his painting, 1956
1908 WATERTOWN POWERS
There are two dams located in the City of Watertown; the lower, a masonry dam, located a few blocks above the Chicago, Milwaukee and St. Paul Railroad bridge, and the upper dam, one and one-half miles above this. The bed of the river at both dams and probably the entire distance between, is in the Trenton limestone. The upper day, usually called the “Rough and Ready” dam, is built of timber with masonry abutments. It is 250 feet long and develops a head of 9 feet. One 45 and one 55 inch turbine are installed, rated at 225 horse-power. This power is owned by the Watertown Electric Company and is used for electric light and power. As the left bank is low the present head represents the maximum head which can be developed. Indeed there have been some complaints of illegal flooding at times of high water. The dam is in a fair state of repair. The legislature of 1906-07 granted the owners the right to raise the crest of dam 2 feet, provided all payment should be first made for all damage so caused.
The lower dam was reconstructed three or four years ago, the present concrete dam replacing an old style timber structure. The present dam is 250 feet long and furnishes a head of about 10 feet. This head cannot be increased as the dam backs the water to the dam above. The lower dam furnishes power to four different concerns, two on each bank. On the right bank are located the Bee-hive and Box Factory owned by G. B. Lewis Company and the Globe Milling Company with installations of two 30 inch and two 40 inch turbines respectively.
On the left bank are located the R. P. Koening Company flour mill and the A. R. Wein Brush Company factory with an installation of 60 inch and 30 inch turbines respectively.
The mills run 18 and the factories 10 hours per day. The owners report that for 8 or 9 months in the year the turbines develop their full power but that during the remainder of the year steam power has to be to a large extent substituted. For this purpose the above flour mills have the following steam power: The Globe Milling Company 200 horse-power; R. P. Koenig Company 85 horse-power; G. B. Lewis Company 225 horse-power, and the A. R. Wein Company 25 horse-power.
The head on the turbines is reported to vary between 12 and 6 feet. With water to the crest of the dam the head is 10 feet. Complaints of illegal flooding by this dam have been made side the reconstruction of the dam.
Watertown is a growing city of 9,000 inhabitants. It is a trading center for a large and rich agricultural region. The city is on the main line of the Chicago, Milwaukee and St. Paul Railroad between Milwaukee and St. Paul and also on the Madison branch of the same railroad. The city is also served by the Chicago and North-Western Railroad between Beloit and Green Bay. Between Watertown and Lake Koshkonong, a distance of 29 miles, the river flows almost due south and with reduced windings. The river varies in width from 150 to 250 feet wide, with banks sloping gently back to a height of from 10 to 20 feet.
The total fall between the foot of the lower Watertown dam and Lake Koshkonong is only 18 feet of which only a third is used. [Bulletins – Geological and Natural History Survey (Wis.), 1908]
Alex Hardie painting, 1946
Old G.B. Lewis Plant, barber shop on Main St bridge in the distance ["The Bridge" barber shop, John Seager]. Shop taken out by March 26, 1904 flood.
07 05 A long family history of producing electricity has led the owner of one of the area’s largest industries to try to generate some kilowatts from one of Watertown’s two dams. “There is still a lot of work to do,” said Tom Reiss, who gained the Watertown Common Council’s approval of a 50-year lease to the dam. The lease of the dam was approved by a 10-1 vote, the only dissenting vote being cast by Alderman Walter Nuernberg, who said an “act of God” phrase describing natural catastrophes was grossly inappropriate. Tuesday’s resolution calls for Reiss to pay rent of $1 per year for the life of the lease. He will also pay the city 5 percent of any profits arising from the dam’s power generation, beginning after its third year of operation. WDT
10 17 The lower Watertown dam is in good shape and a Department of Natural Resources report that shows several areas of the dike are deteriorating is not a cause for alarm. The dam, located on the Rock River between Main Street and Milwaukee Street, was inspected by the DNR in August. “There are some areas which need attention. They are the main spillway, the pier between the main spillway and the secondary spillway, the tainter gate and the right embankment,” said William Sturtevant, assistant dam safety engineer, who coordinated the inspection. “The main spillway has points of extensive spalling (or chipping) in many areas. At various locations along the downstream side of the spillway, deterioration has led to leaking.” WDT
10 28 An owner of one of Watertown’s major industries, who is also the president of a group of landowners living next to the Rock River, has proposed leasing the lower Rock River dam to generate electricity. Thomas Reiss, owner of Reiss Industries, 319 Hart Street, is expected to present his plans to the Watertown Common Council. The city of Watertown currently owns the dam, located south of Main Street and between First and Water streets. WDT
1987 PROPOSAL TO INSTALL ELECTRICITY-GENERATING EQUIPMENT
12 24 The state Department of Natural Resources is seeking public comment on a proposal by Thomas Reiss Jr. to install electricity-generating equipment at the lower dam on the Rock River. Reiss is president of Rock River Power and Light Corporation, which is seeking a federal license for a hydroelectric generating plant on the dam, located south of Main Street between First and Water streets. As part of the license review process, the DNR must comment on resource issues such as water levels and flow, fisheries, wildlife, recreation and water quality. WDT
02 06 PROPOSAL TO GENERATE ELECTRICITY
Thomas Reiss Jr.’s proposal to generate electricity at the Rock River’s lower dam in Watertown is expected to receive favorable comment from the state Department of Natural Resources. Bob Hansis, water management specialist for the DNR’s southern district, said DNR officials had no major concerns about the plan. The department will make some recommendations to Reiss when it completes its final comment in about a month,” he said. “Mostly, we’ll be making smaller impact decisions,” Hansis said. WDT
06 15 FUNDS TO REPAIR DAM TURNED DOWN
City of Watertown officials were disappointed to learn that their request for $200,000 in state funds to repair the Rock River’s lower dam has been turned down. Ironically, the city failed to receive any of the $2.4 million that was appropriated for dam repairs, even though Watertown officials were instrumental in pushing for the state Department of Natural Resources to spend the funds, according to Mayor David Lenz. “We found out that there was money that had been allocated for dam repair projects, but nothing was being done with it. It was sitting there at the DNR,” Lenz said. “(Sen. Barbara) Lorman and (Rep. Randall) Radtke started things moving at the city of Watertown’s request. They literally got the thing going. WDT
11 23 $200,000 GRANT TO REPAIR DAM
Watertown will receive a $200,000 grant next year to repair the lower dam. Earlier this year the city was told it had just missed funding for the project. The city’s project ranked 13th and only 12 were funded by the Wisconsin Department of Natural Resources. However, because one community later declined the grant, Watertown was offered the funds. Joseph Radocay said the grant is good news for the city. The council this year authorized borrowing the full $495,000 for the project. Under terms of the DNR grant, the city will have to prepare plans and specifications for the project in the next four months, have them approved and have the actual construction project completed in 1992.
09 09 RIVER LOWER IN PREP FOR DAM REPAIR
The water level of the Rock river will be lowered about two feet near the lower dam to allow workers to repair the facility starting next week. City Engineer Joseph Radocay said workers have begun to release more water through the tainter gate at the dam to bring the water level down. The lower level will allow contractor Zenith Tech Inc. of Waukesha to construct a coffer- dam upstream so that repairs can be made to the dam. The state Department of Natural Resources ordered the city to upgrade the lower dam so that it would be able to withstand a severe flood, the type that is projected to occur once every 1,000 years. The project includes raising the embankment on both sides of the dam, repairing the wing walls on the west side, rehabilitation of the concrete dam spillway face on the south side, anchoring the spillway with stainless steel rods in the bedrock, and repairing the tainter gate, which controls the opening and closing of the dam on the west side.
12 12 POWER TO BE GENERATED ONCE AGAIN
For the first time in decades, power will be generated at the lower dam of the Rock River starting next spring. Tom Reiss, owner of Rock River Power and Light Company, said he hopes to generate hydroelectric power at the dam starting in April 1993. The dam, located south of Main Street between Water and First streets, was last used to generate mechanical power about 40 years ago. Currently, workers from Zenith Tech. Inc. of Waukesha are constructing the powerhouse building, located on the west banks of the river. The concrete base of the building has been poured for the four-floor structure, which will house two turbines capable of generating a maximum of 350 kilowatts. Once work is completed on the building and a new tainter gate is installed, the coffer dam will be removed on the west side. The coffer dam has directed water away from the section of the river where work is being completed.
09 20 ELECTRICITY TO BE GENERATED SOON
Electricity could be generated at the lower dam of the Rock River as early as this fall, according to Tom Reiss, owner of Rock River Power and Light Company, which is building the project. Brick work on the powerhouse was nearing completion this week and installation of the generating equipment was expected to follow, Reiss said. Without any further delays due to weather, he hopes to begin generating power by the end of October. “We want to begin operating as soon as possible,” he said. The project started last year in conjunction with the city’s rehabilitation of the lower dam, which is leased by Reiss. However, the high level of the Rock River this spring delayed the project. WDT
12 26 POWER BEING GENERATED
For the first time in about half a century, power has been generated at the Watertown lower dam on the Rock River. Tom Reiss, owner of Rock River Power and Light Company, said electricity was first generated at his powerhouse Saturday afternoon. “We started Saturday and we ran for half the day and 10 hours on Sunday,” Reiss said. The powerhouse has not been operated since then because of the city’s ongoing project to rehabilitate the concrete surface of the dam’s uncontrolled spillway. Reiss said he didn’t want the operation of the powerhouse to affect the curing of concrete on the dam. WDT
01 22 REQUEST FINANCIAL ASSISTANCE FOR MAINTENANCE AND REPAIR
The council approved a resolution to request financial assistance from the Wisconsin Department of Natural Resources to help pay for maintenance and repair work to the lower Watertown dam. According to the resolution, the work is estimated to cost $102,000. WDT
01 22 ROCKS THROWN AT TAINTER GATE
Engineer Holloway reported that Tom Reiss, operator of the lower dam off S. Water Street, notified City officials that a lot of rocks were being thrown at the tainter gate. Mr. Reiss is concerned this will cause rust in the gate and unnecessary repairs. After discussion, the Commission decided we should monitor the situation for the time being and report back to Mr. Reiss about our discussion and our concerns as well. [City Council meeting of 02 07]
03 22 DAM REHABILITATION
The council voted to choose the low bidder, Janke General Contractors to do the dam’s rehabilitation work for $1,048,989. The dam was last repaired in 1992, but a mesh fabric that was placed on the upstream side of the dam improperly adhered to concrete on the dam.
Over the years it has further eroded, allowing water to get behind the dam and with freeze thaw conditions and the way the dam is constructed with the concrete created seams where water was able to go through creating pop-outs on the front base of the dam. Part of the project will be funded through a DNR grant that would pay for about $362,000 of the total cost. Because of budget restrictions, a separate repair of the dam’s tainter gate will have to be postponed until more funds are available.
As part of the project, the observation deck overlooking the deck will have to be removed for crane placement.
The project was originally scheduled to begin a year ago, but all bids came in over the budgeted amount. Although there is no definitive start date yet the project must be completed before Dec. 29 to receive the grant funding.
05 05 CONSTRUCTION INSPECTION & PROJECT MANAGEMENT CONTRACT
Council Proceedings: Review & approve Construction Inspection & Project Management Contract from Ayres Associates for Lower Dam Repairs Project. Engineering is recommending Ayres Associates at a cost for inspection services of $30,300.00 during construction and $2,100.00 for post-construction. Motion passed unanimously.
09 13 RIVER DRAW DOWN DURING DAM REPAIR
09 26 MORE OF DAM TO BE REPAIRED
Finance Committee was made aware of an upcoming change order to the lower dam project. After closer sounding of the dam’s downstream face, it was discovered more square footage will have to be repaired. The order is expected to cost an additional $26,000 which will come out of the reserve fund created for the project.
10 03 DAM REPAIRS CONTINUE
Janke General Contractors will be working to install an impermeable geomembrane on the upstream face of the existing concrete gravity spillway, perform surface repairs on the upstream and downstream faces of the concrete spillway, and inject cementitious grouting at the left abutment at the dam's left abutment. The dam was last repaired in 1992, but a mesh fabric that was placed on the upstream side of the dam improperly adhered to concrete on the dam. Over the years it eroded, allowing water to get behind the dam with freeze and thaw conditions. The way the dam is constructed with concrete created seams where water was able to go through, creating pop-outs on the front base of the dam.
Part of the project will be funded through a Department of Natural Resources grant that would pay for about $362,000 of the total cost. Because of budget restrictions, a separate repair of the dam's tainter gate will have to be postponed until more funds are available.
11 10 CHANGE ORDERS FOR DAM REHABILITATION
Change Orders No. 1, 2 & 3 for the Lower Dam Rehabilitation Project were presented. Change Order No. 1 is a deduction from the contract of $15,000.00. Change Order No. 2 is an addition of $28,380.00 for the purpose of purchasing boulders. Change Order No. 3 is an increase in the contract of $55,241.50 to mobilize, demobilize and place this rock as required for the project. The motion to adopt these resolutions carried.
12 07 DAM REPAIR COMPLETED
Despite a few last minute change orders, the rehabilitation of Watertown’s lower dam was completed ahead of schedule and under budget. One of the change orders involved the replacement of hundreds of angular boulders which dissipate energy and noise from water crashing over the dam. The old boulders were discovered to be damaged by erosion when the river level was lowered earlier this year. The city purchased 645 tons of rock which weigh between 1,500 and 4,000 pounds each. The boulders, which cost just over $28,000, were purchased from Michels Materials, a quarry in Waterloo, and are made of a quartzite material, which is harder than limestone or even granite so they’ll be less prone to erosion. Even accounting for the change orders, the cost of the project, which totals just over $1 million, came in about $100,000 under budget.
06 17 YouTube VIDEO CLIP
Loss of life by dam, Rock River. 1876
